Graph Sketching and Recognition

The following practice questions test your understanding of the graphical description of motion. Use the Show Answer! button to view answers and explanations. Further information is available on-line at The Physics Classroom Tutorial.

NOTE to the Student:
There is a lot of information on this page. It is suggested that you first read the questions and make efforts to answer all the questions before peeking at the answers. Once you've answered all the questions, then check your answers. Physics is learned most effectively when your mind is actively engaged in the processes of analyzing and predicting. Avoid treating the information on this page as factual information to be dumped inside of a mental receptacle. Avoid merely looking at the answers; take the time to study the logic of the answers. If still unclear, consider online help at The Physics Classroom Tutorial or see your teacher for further assistance.

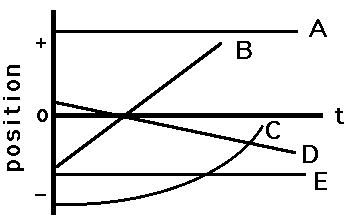

Use the following graph to answer Questions #1 - #7.



1. Which object(s) is(are) maintaining a state of motion (i.e., maintaining a constant velocity)?
Show answer!


2. Which object(s) is(are) accelerating?
Show answer!


3. Which object(s) is(are) not moving?
Show answer!


4. Which object(s) change(s) its direction?
Show answer!


5. On average, which object is traveling fastest?
Show answer!


6. On average, which moving object is traveling slowest?
Show answer!


7. Which object has the greatest acceleration?
Show answer!

Use the following graph to answer Questions #8 - #13.



8. Which object(s) is(are) maintaining its state of motion?
Show answer!


9. Which object(s) is(are) accelerating?
Show answer!


10. Which object(s) is(are) not moving?
Show answer!


11. Which object(s) change(s) its direction?
Show answer!


12. Which accelerating object has the smallest acceleration?
Show answer!


13. Which object has the greatest velocity?
Show answer!



14. Sketch a position-time graph for an object which is moving with a constant, positive velocity.
Show answer!


15. Sketch a position-time graph for an object which is moving with a constant, negative velocity.
Show answer!


16. Sketch a position-time graph for an object moving in the + dir'n and accelerating from a low velocity to a high velocity.
Show answer!


17. Sketch a position-time graph for an object moving in the + dir'n and accelerating from a high velocity to a low velocity.
Show answer!


18. Sketch a position-time graph for an object moving in the - dir'n and accelerating from a high velocity to a low velocity.
Show answer!


19. Sketch a position-time graph for an object moving in the - dir'n and accelerating from a low velocity to a high velocity.
Show answer!


20. Sketch a position-time graph for an object moving in the + dir'n with constant speed; first a slow constant speed and then a fast constant speed.
Show answer!


21. Sketch a position-time graph for an object moving in the + dir'n with constant speed; first a fast constant speed and then a slow constant speed.
Show answer!


22. Sketch a position-time graph for an object moving in the - dir'n with constant speed; first a slow constant speed and then a fast constant speed.
Show answer!


23. Sketch a position-time graph for an object moving in the - dir'n with constant speed; first a fast constant speed and then a slow constant speed.
Show answer!


24. Sketch a position-time graph for an object which moves in the + direction at a slow constant speed and then in a - direction at a fast constant speed.
Show answer!


25. Sketch a position-time graph for an object which moves in the + direction at a fast constant speed and then in a - direction at a slow constant speed.
Show answer!


26. Sketch a position-time graph for an object which moves in the - direction at a slow constant speed and then in a + direction at a fast constant speed.
Show answer!


27. Sketch a velocity-time graph for an object moving with a constant speed in the positive direction.
Show answer!


28. Sketch a velocity-time graph for an object moving with a constant speed in the negative direction.
Show answer!


29. Sketch a velocity-time graph for an object which is at rest.
Show answer!


30. Sketch a velocity-time graph for an object moving in the + direction, accelerating from a slow speed to a fast speed.
Show answer!


31. Sketch a velocity-time graph for an object moving in the + direction, accelerating from a fast speed to a slow speed.
Show answer!


32. Sketch a velocity-time graph for an object moving in the - direction, accelerating from a slow speed to a fast speed.
Show answer!


33. Sketch a velocity-time graph for an object moving in the - direction, accelerating from a fast speed to a slow speed.
Show answer!


34. Sketch a velocity-time graph for an object which first moves with a slow, constant speed in the + direction, and then with a fast constant speed in the + direction.
Show answer!


35. Sketch a velocity-time graph for an object which first moves with a fast, constant speed in the + direction, and then with a slow constant speed in the + direction.
Show answer!


36. Sketch a velocity-time graph for an object which first moves with a constant speed in the + direction, and then moves with a positive acceleration.
Show answer!


37. Sketch a velocity-time graph for an object which first moves with a constant speed in the + direction, and then moves with a negative acceleration.
Show answer!
