Set RT1: Torque Produced by a Single Force

Problem
Points
0/2
0/2
0/2
0/2
0/2
0/2
Total Score
0/12
Percentage
0 %
Assignment Overview

Calculate the torque produced by a single force at a set distance from a prescribed pivot point. The angle between the distance and force must be considered. 6 problems.

 1. RT1Q1
Points: 0/2

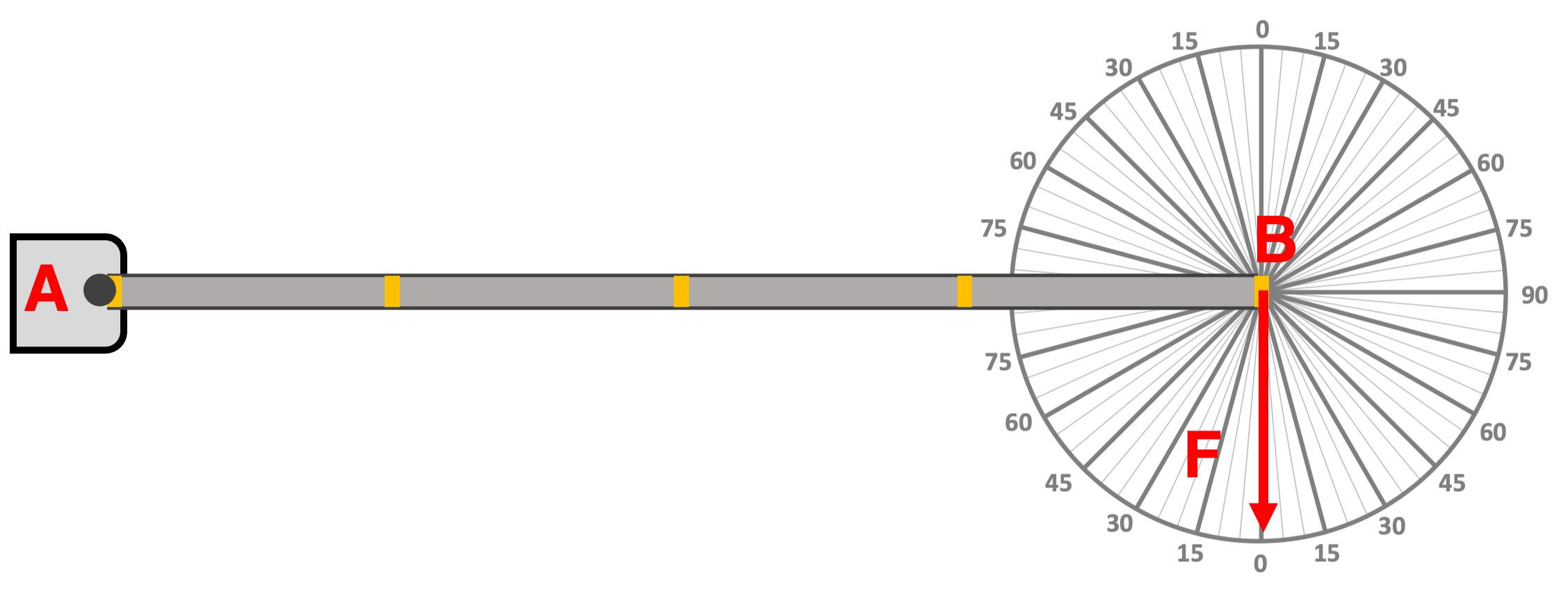

What is the torque about the pin joint at point A from the force applied at point B if Force F = 170 Newtons and the distance between vertical yellow marks is 6 cm?

  1. Torque magnitude

    N*cm

  2. Is the force trying to rotate the beam clockwise or counterclockwise around point A?

 2. RT1Q2
Points: 0/2

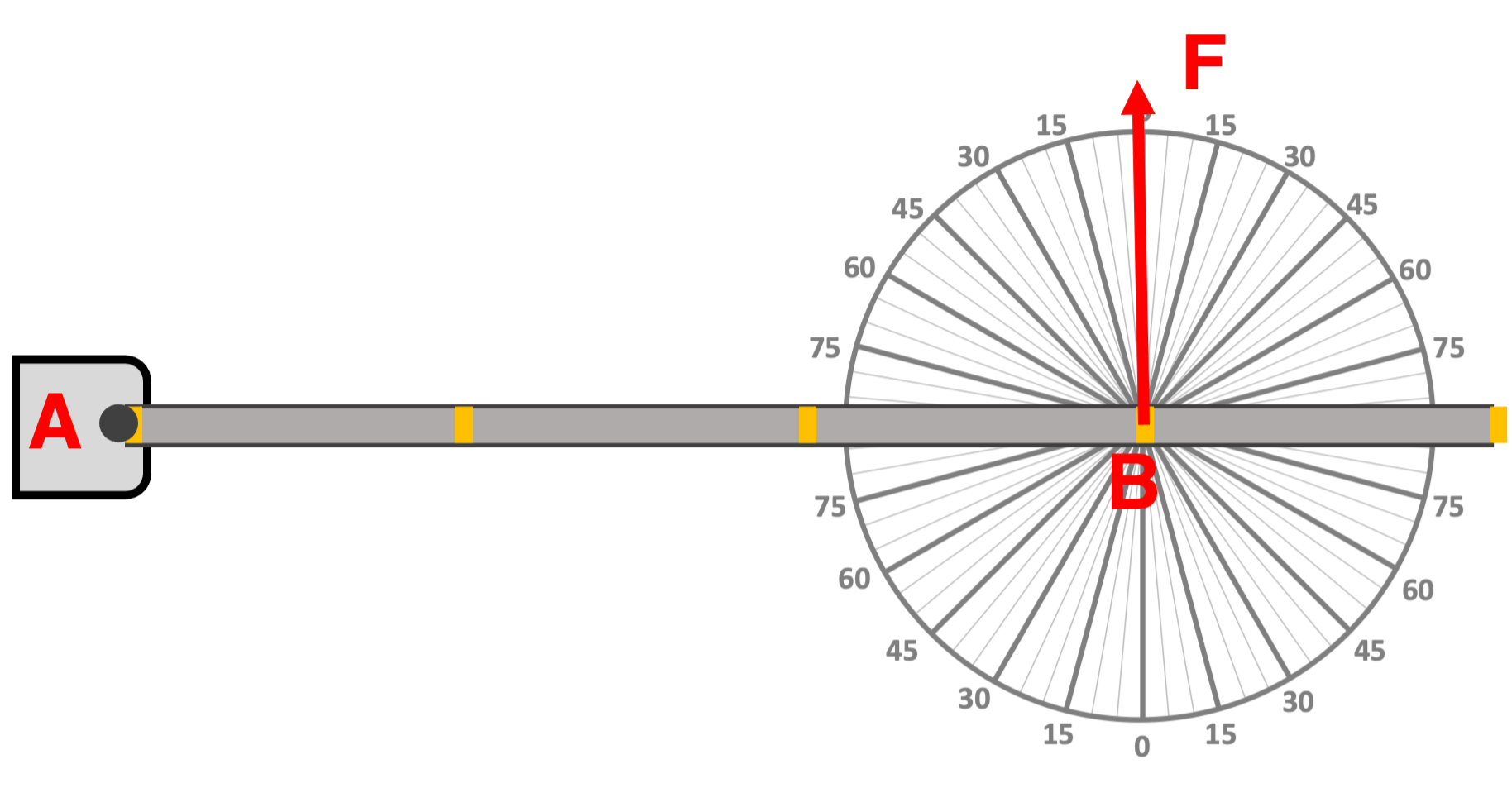

What is the torque about the pin joint at point A from the force applied at point B if Force F = 120 Newtons and the distance between vertical yellow marks is 8 cm?

  1. Torque magnitude

    N*cm

  2. Is the force trying to rotate the beam clockwise or counterclockwise around point A?

 3. RT1Q3
Points: 0/2

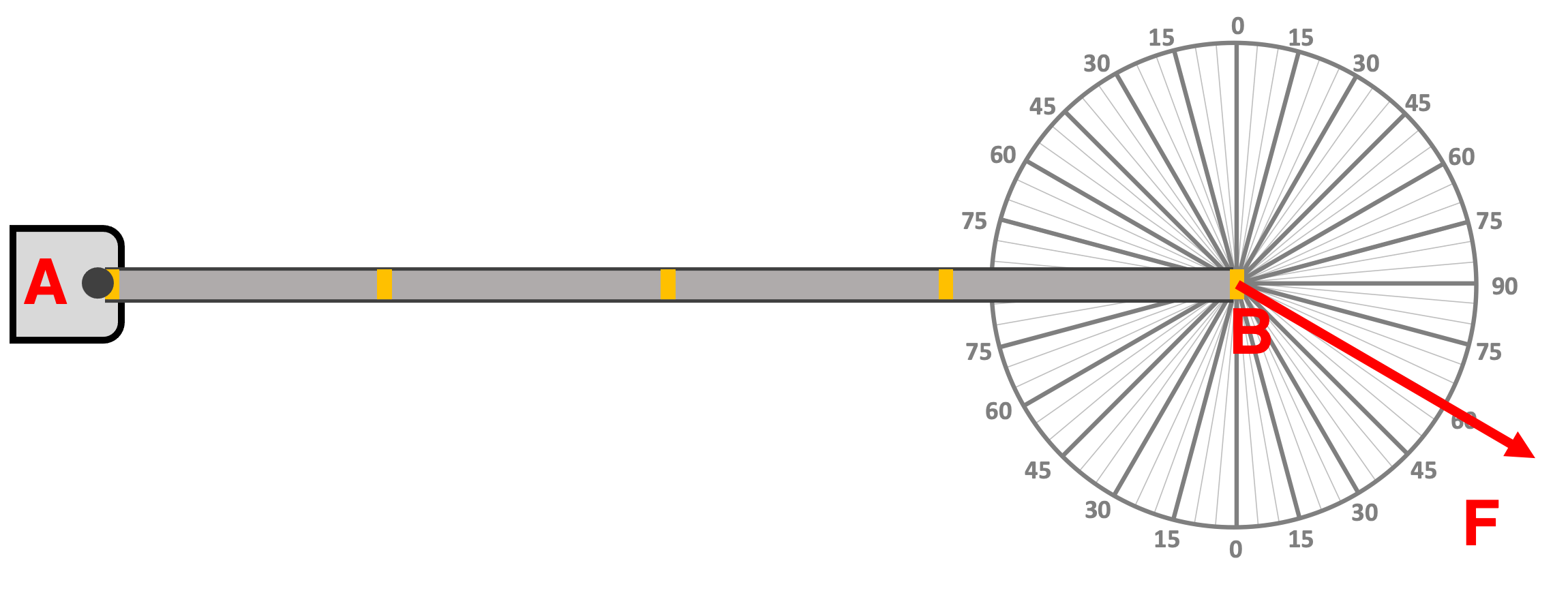

What is the torque about the pin joint at point A from the force applied at point B if Force F = 155 Newtons and the distance between vertical yellow marks is 8 cm?

  1. Torque magnitude

    N*cm

  2. Is the force trying to rotate the beam clockwise or counterclockwise around point A?

 4. RT1Q4
Points: 0/2

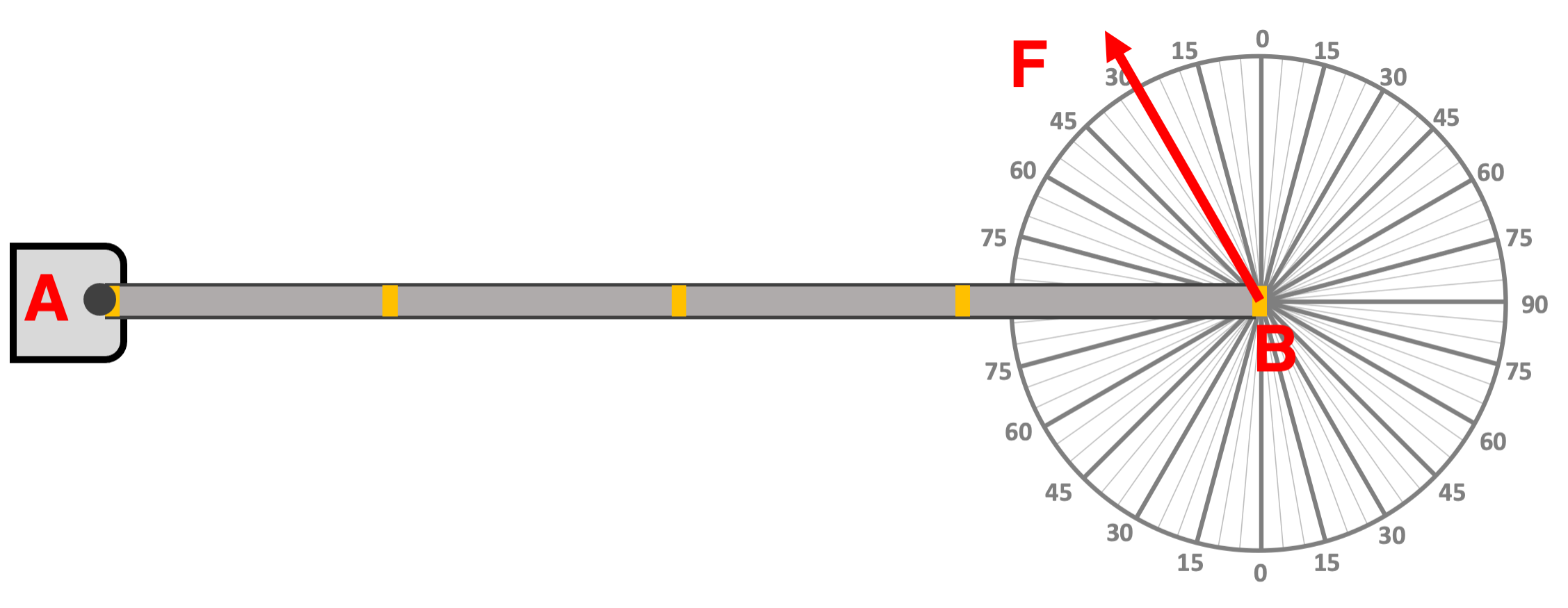

What is the torque about the pin joint at point A from the force applied at point B if Force F = 110 Newtons and the distance between vertical yellow marks is 10 cm?

  1. Torque magnitude

    N*cm

  2. Is the force trying to rotate the beam clockwise or counterclockwise around point A?

 5. RT1Q5
Points: 0/2

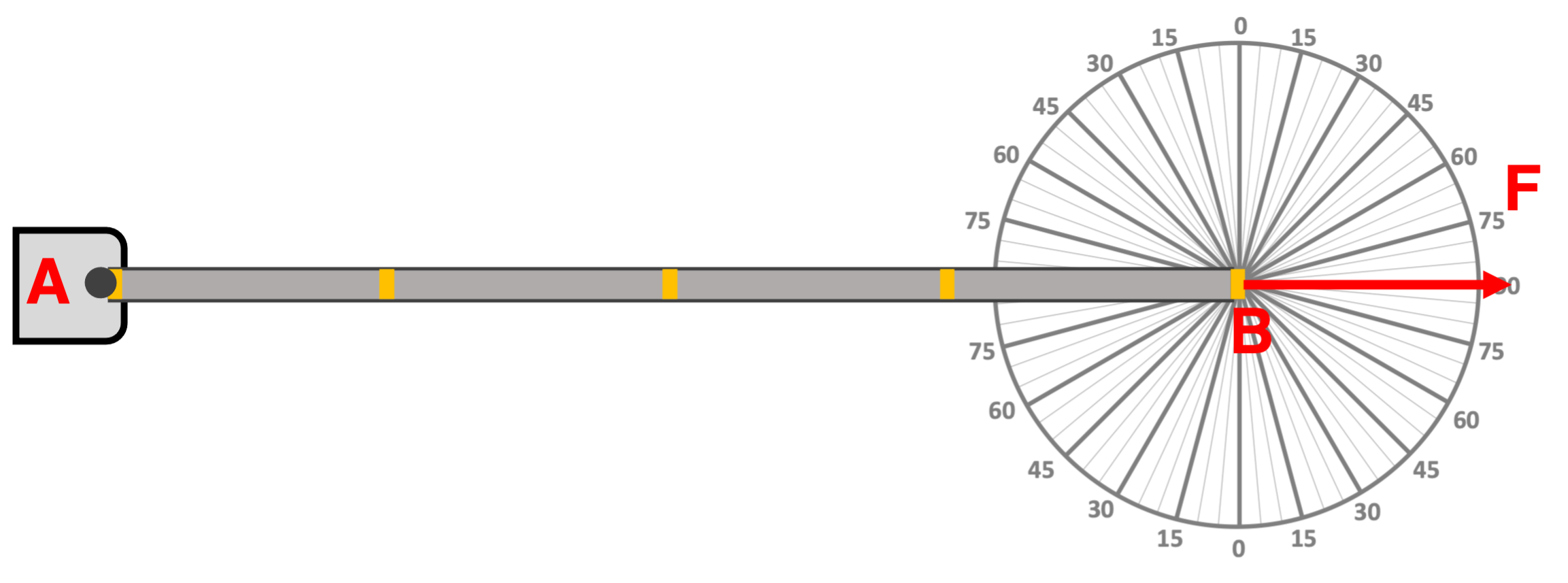

What is the torque about the pin joint at point A from the force applied at point B if Force F = 160 Newtons and the distance between vertical yellow marks is 10 cm?

  1. Torque magnitude

    N*cm

  2. Is it trying to rotate the beam clockwise or counterclockwise around point A?

 6. RT1Q6
Points: 0/2

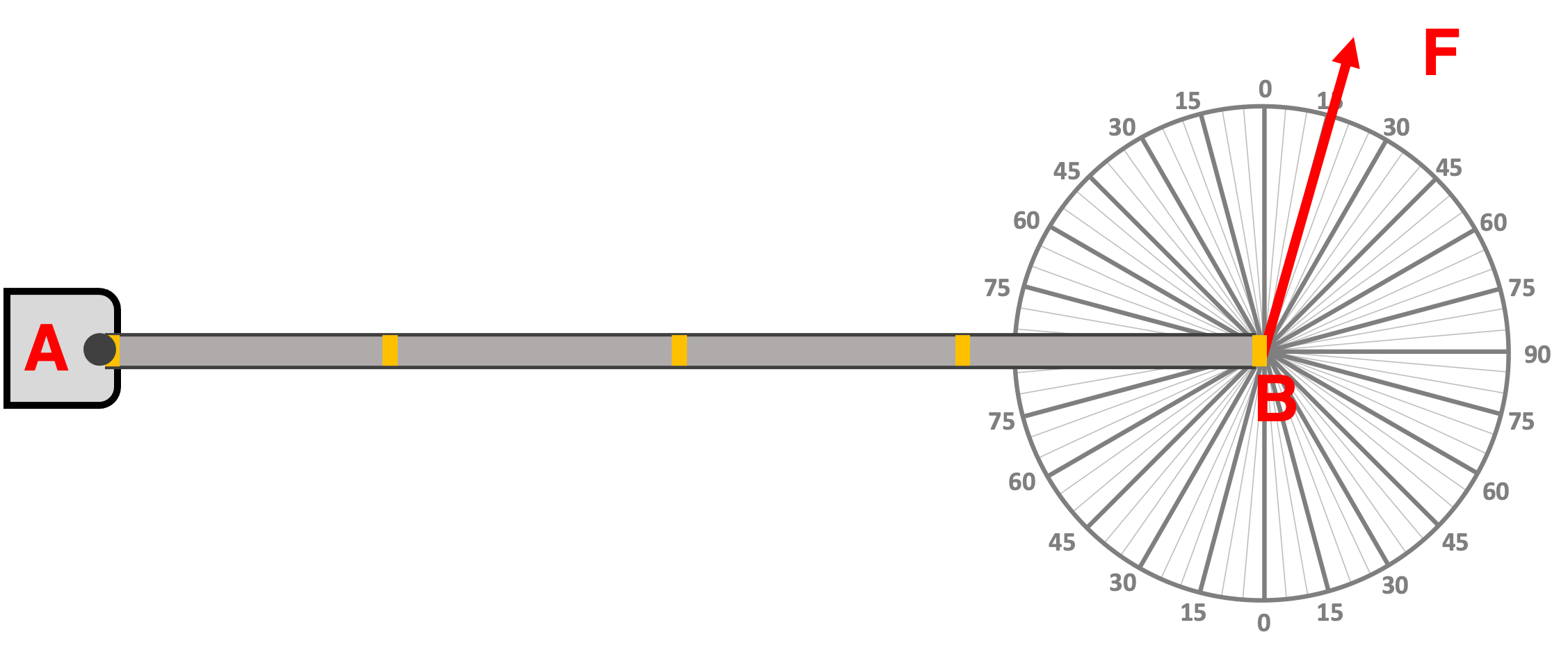

What is the torque about the pin joint at point A from the force applied at point B if Force F = 95 Newtons and the distance between vertical yellow marks is 4 cm?

  1. Torque magnitude

    N*cm

  2. Is the force trying to rotate the beam clockwise or counterclockwise around point A?
