The Big Idea
Learn how heat causes substances to change temperature or to change state and how to analyze such changes using Q=m•C•∆T and heat of fusion and vaporization values.
Heating Curves and Changes of State
The topic of changes of state was discussed in Lesson 2a of Chapter 11 of this Chemistry Tutorial. While we often discuss six changes of state, the focus on this page will be upon melting (a.k.a., fusion) and vaporization (which includes boiling).
In Chapter 11, we introduced the idea of a heating curve using a thought experiment. If we were to heat a sample of ice at -20°C in a closed container to a temperature of 120°C, we can imagine five different changes that would occur:
- The ice first would undergo a temperature change until it reaches its melting temperature of 0°C.
- At the melting point, the ice would undergo a state change from a solid to a liquid. The ice would melt while the temperature remained constant at 0°C.
- Once all the ice was melted, the liquid water would undergo a temperature change until it reaches its boiling point of 100°C.
- At the boiling point, the liquid would undergo a state change from the liquid to the vapor state. The water would boil while the temperature remained constant at 100°C.
- Once all the liquid water was boiled, the water vapor would undergo a temperature change to 120°C. At this point, we turn off the heat and our (thought) experiment ends.

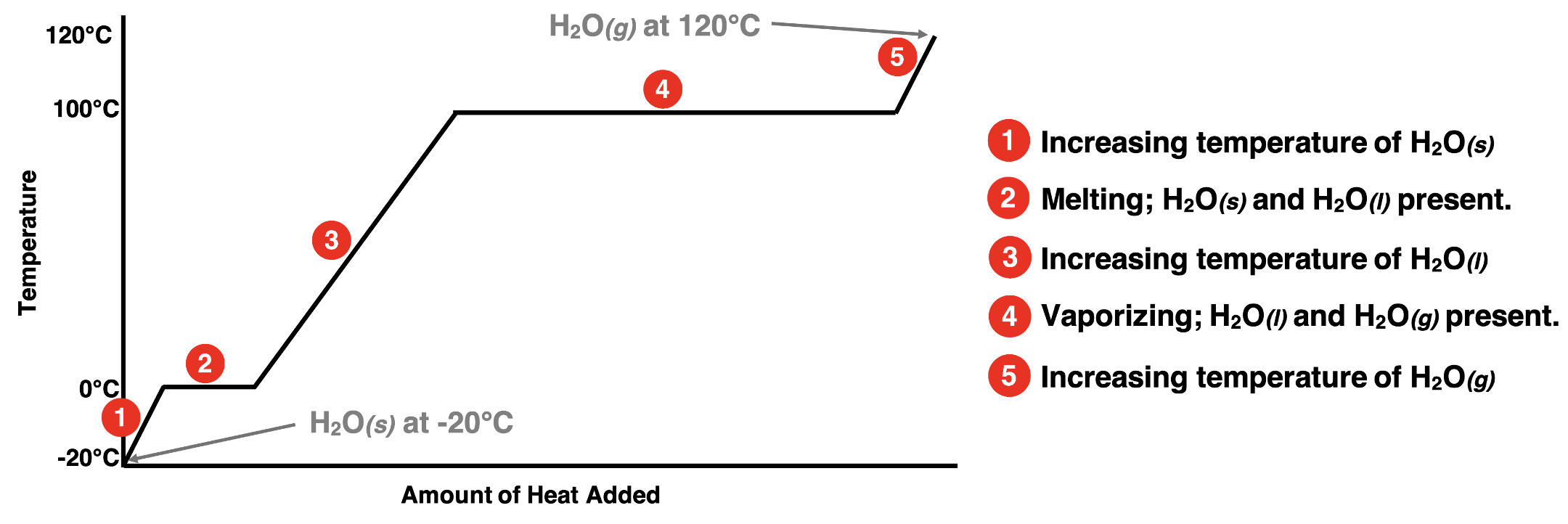

If this 5-stage process was represented on
a graph of temperature vs. heat added, it would look like the graph below. This graph is referred to as a
heating curve.
Diagonal Lines vs. Horizontal Lines on Heating Curves
Note that there are three diagonal lines on the heating curve and two horizontal lines. The diagonal lines are associated with temperature changes; the added heat causes particles to increase the kinetic energy of motion. The horizontal lines on the heating curve are associated with state changes; the added energy is used to overcome the attractions that hold particles in their state.
Energy (in the form of heat) is required for all five stages. The amounts can be calculated. For the diagonal lines (temperature changes), the amount of required heat can be calculated using the
Q = m•C•∆T equation. For the horizontal lines (state changes), the amount of required heat can be calculated using heat of fusion and heat of vaporization values.
Heat of Fusion
Fusion is the process of changing the state of a substance from a solid to a liquid. Fusion is more commonly referred to as melting. Because
fusion requires that the intermolecular forces holding particles in the solid state be overcome, the process requires energy. That is, fusion is
an endothermic process.

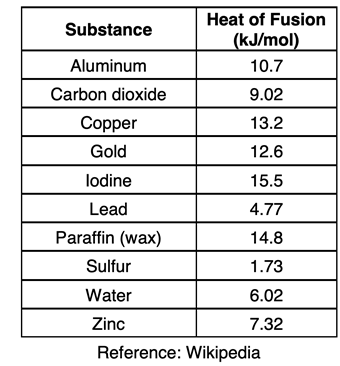

The amount of energy required to change a solid to a liquid at its melting point is known as the
heat of fusion. The strength of the intermolecular forces between solid particles varies from substance to substance. Thus, different substances have different heat of fusion values. Values for a sampling of materials are shown in the table at the right. Values for heat of fusion are typically expressed in kilojoules per mole (kJ/mol, as shown) or in joules/gram (J/g). When expressed in units of kJ/mol, the value is referred to as the
molar heat of fusion.
Using the
factor label method, a heat of fusion value can be used to determine the amount of energy required to melt a given amount of a substance. For instance, let’s suppose that we wish to determine the amount of energy required to melt a 100.0-gram sample of ice. The mass of the sample, the molar mass of ice (H
2O), and the molar heat of fusion can be used to determine the amount of energy required to melt the 100.0-g ice sample.
Observe how the conversion factors - molar mass and molar heat of fusion - are arranged to cancel units (grams and moles) with kilojoules remaining as the uncancelled unit.
Heat of Vaporization
Vaporization is the process of changing the state of a substance from a liquid to a gas (or vapor). When done at the boiling point, the process is referred to as
boiling.
An ideal gas experiences no intermolecular forces. A
liquid does experience intermolecular forces that prevent particles from filling the entire container. Boiling is an endothermic process that supplies a liquid sample with enough energy to allow partciles to overcome the forces that hold them together in the liquid state.
The amount of energy required to change a liquid to a gas at its boiling point is known as the
heat of vaporization. Different substances have different heat of vaporization values. Values for a sampling of materials are shown in the table at the right. Values for heat of vaporization are typically expressed in kilojoules per mole (kJ/mol as shown) or in joules/gram (J/g). When expressed in units of kJ/mol, the value is referred to as the
molar heat of vaporization.

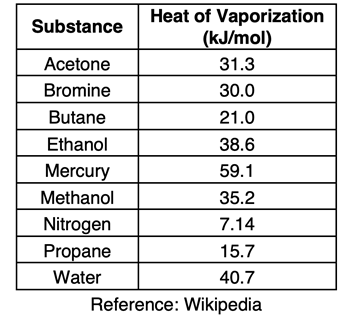

Similar to the calculation shown above, heat of vaporization values can be used as conversion factors to determine the amount of energy required to boil a given amount of substance. Suppose you wished to determine the amount of energy required to boil a 100.0-gram sample of liquid water. The mass, molar mass, and molar heat of vaporization can be combined to determine the amount of energy as shown below.
An Example of How to Analyze a Heating Curve
Let’s put a small twist on our original thought experiment - heat a sample of ice at -20.0°C to a temperature of 120.0°C in a closed container. Let’s think through how we would determine the quantity of heat that would be required for such a change. We will assume that we start with a 100.0-gram sample of ice.
As we discussed earlier, this is a five-stage process. Three of the
five stages involve a temperature change. The quantity of heat (
Q) that is required for such temperature changes can be calculated using the equation
Q = m•C•∆T where
m is the mass of the sample,
C is the specific heat capacity of the substance, and
∆T is the temperature change. The value of

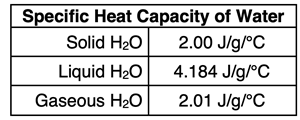

C is different for the solid, liquid, and gaseous state. Three calculations must be made - one for each of the stages involving a temperature change.
Two of the five stages involve a state change occurring at a constant temperature. The fusion of the ice occurs at 0.0°C. The vaporization of the liquid water occurs at 100.0°C. The quantity of heat (
Q) that is required for such state changes can be calculated using the equations
Qfusion = n•∆Hfusion
Qvaporization = n•∆Hvaporization
where
n is the number of moles of water and
∆Hfusion and
∆Hvaporization are the molar heat of fusion and the molar heat of vaporization values. For water, those values are 6.02 kJ/mol and 40.7 kJ/mol respectively. The value of
n can be calculated from the mass in grams using the molar mass value of water.
The heating curve graph below summarizes the mathematical relationships discussed above.
Not every
heating curve analysis involves a 5-stage calculation. For instance, consider the following two problems:
- Determine how much heat is required to change 100.0-g of water at 50.0°C to a gas at 120.0 °C.
- Determine how much heat is required to change 100.0-g of ice at 0.0°C to a gas at 100.0 °C.

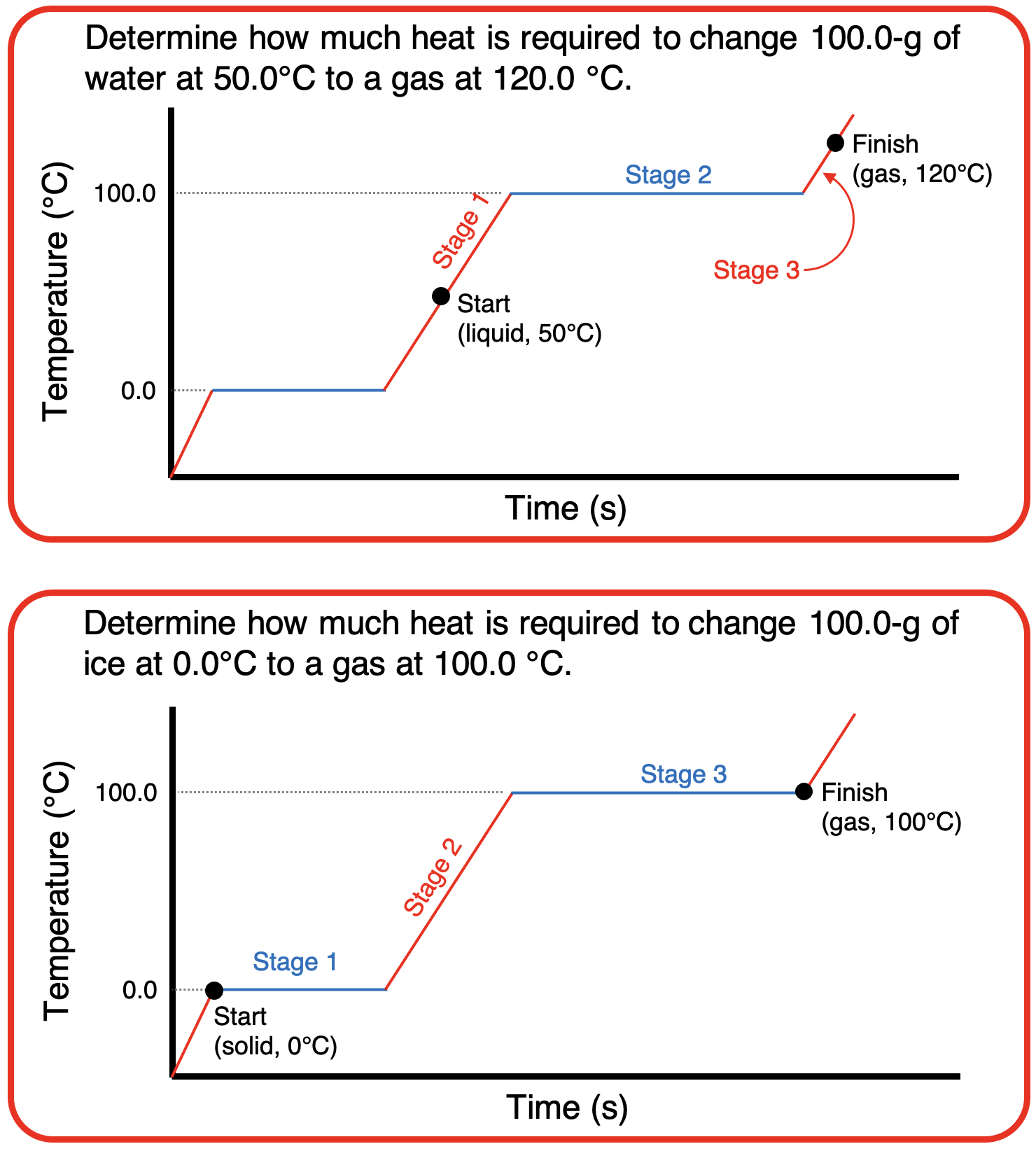

Both of these problems would involve a 3-stage analysis. An understanding of heating curves makes the analysis considerably easier. Find your starting point and your final destination on the graph. Then determine how to proceed. This type of analysis is demonstrated below for the two stated problems. The complete mathematics is shown in
Example 2 and
Example 3.
The following examples are based on the discussion above. We recommend that you attempt the problem on your own and then tap the button to check your answer.
Example 1 - Analyzing a Heating Curve
Determine the total quantity of energy required to heat a 100.0-g sample of ice at -20.0°C to a temperature of 120.0°C.
View Answer and Solution
Answer: 309 kJ
Solution:

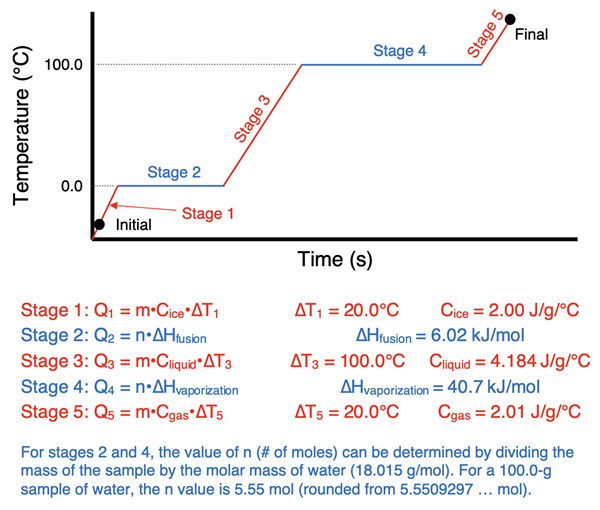

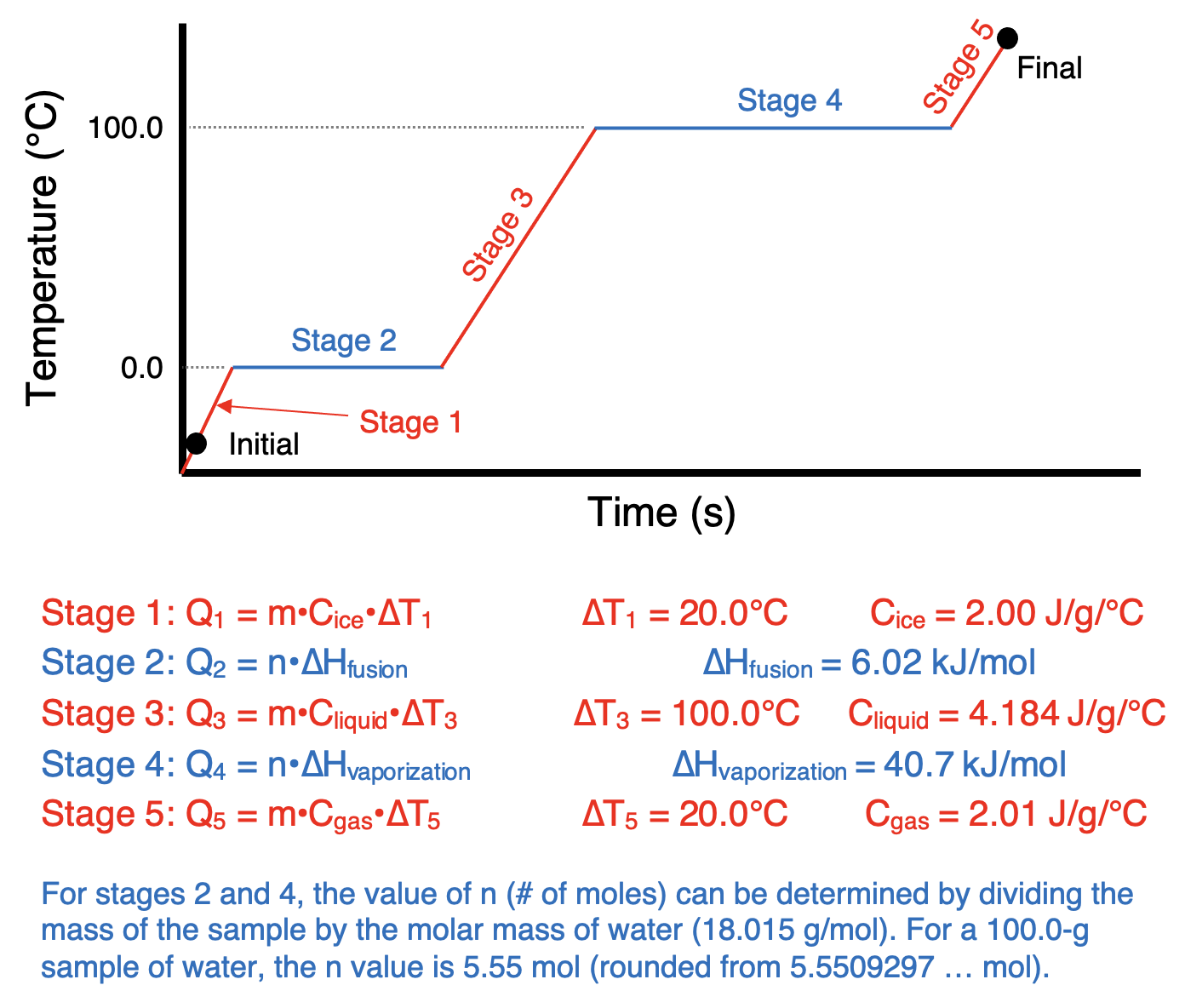

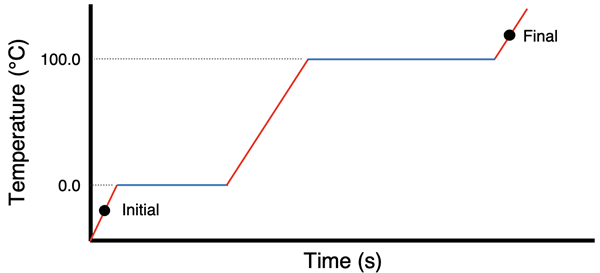

This is a five-stage analysis. The graph below describes the mathematical relationships for each stage.
We will perform the five calculations (one for each stage) and then sum all the values of Q. We will need to give attention to units throughout the entire process, using kilojoules as our final unit for the Q values.
Stage 1: Heating ice from -20.0°C to its melting point (0.0°C)
Use Q
1 = m•C
ice•∆T
1
where m = 100.0 g, C
ice = 2.00 J/g/°C, and ∆T
1 = 20.0°C
Q
1 = (100.0 g)•(2.00 J/g/°C)•(20.0°C)
Q
1 = 4000 J =
4.00 kJ
Stage 2: Melting ice at its melting point (0.0°C); no temperature change
Use Q
2 = n• ∆H
fusion
where n = (100.0 g)•(1 mol/18.015 g) = 5.5509297… mol
and ∆H
fusion = 6.02 kJ/mol
Q
2 = (5.5509297… mol)•(6.02 kJ/mol)
Q
2 =

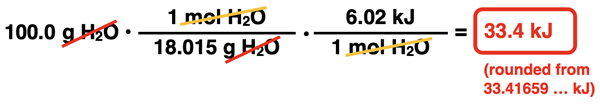

33.4 kJ (rounded from 33.41659 … kJ)
Stage 3: Heating liquid water from 0.0°C to its boiling point (100.0°C)
Use Q
3 = m•C
liquid water•∆T
3
where m = 100.0 g, C
liquid water = 4.184 J/g/°C, and ∆T
3 = 100.0°C
Q
3 = (100.0 g)•(4.184 J/g/°C)•(100.0°C)
Q
3 = 41840 J =
41.84 kJ
Stage 4: Boiling water at its boiling point (100.0°C); no temperature change
Use Q
4 = n• ∆H
vaporization
where n = (100.0 g)•(1 mol/18.015 g) = 5.5509297… mol
and ∆H
vaporization = 40.7 kJ/mol
Q
4 = (5.5509297… mol)•(40.7 kJ/mol)
Q
4 =

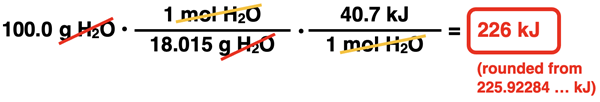

226 kJ (rounded from 225.92284 … kJ)
Stage 5: Heating water vapor from 100.0°C to its final temperature (120.0°C)
Use Q
5 = m•C
gaseous water•∆T
5
where m = 100.0 g, C
gaseous water = 4.184 J/g/°C, and ∆T
5 = 20.0°C
Q
5 = (100.0 g)•(2.01 J/g/°C)•(20.0°C)
Q
5 = 4020 J =
4.02 kJ
Now that the heat requirements for all five stages have been calculated, we can add all the Q values to determine the final answer.
Q
total = Q
1 + Q
2 + Q
3 + Q
4 + Q
5
Qtotal = 309 kJ
Example 2 - Analyzing a Heating Curve
Determine how much heat is required to change 100.0-g of water at 50.0°C to a gas at 120.0 °C.
View Answer and Solution
Answer: 251 kJ
Solution

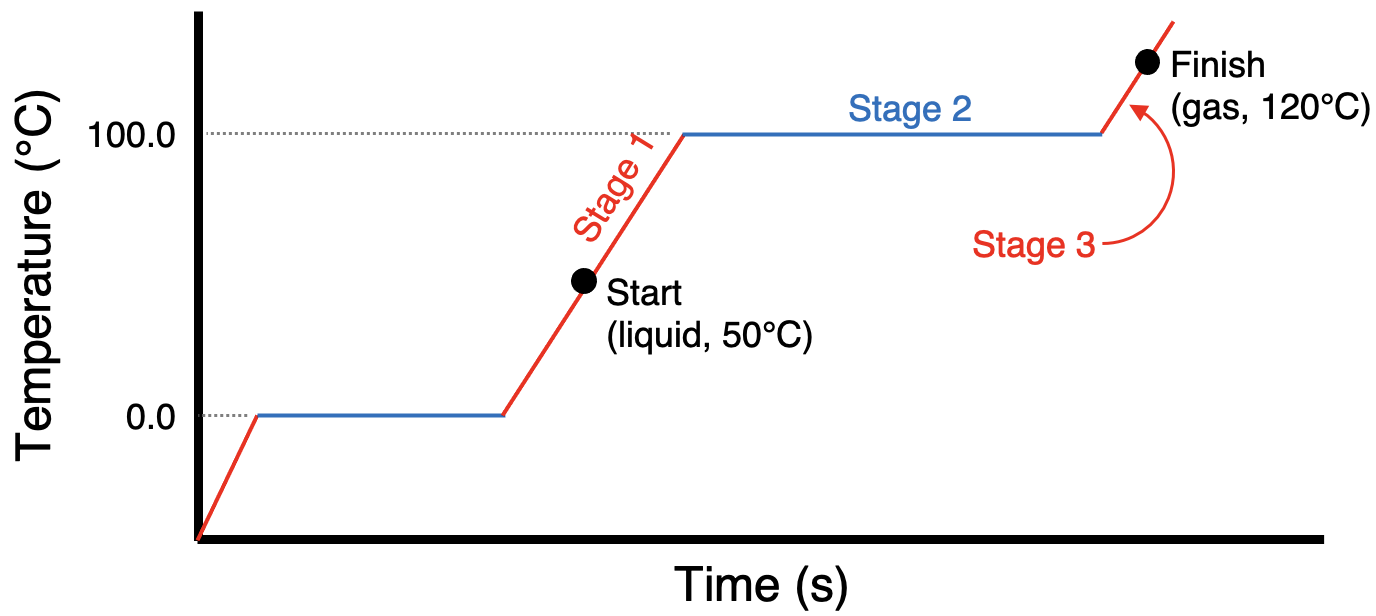

This is a three-stage analysis. The graph below shows the starting point and the final destination of a heating curve. Our solution corresponds to the graph.
Stage 1: Heating liquid water from 50.0°C to its boiling point (100.0°C)
Use Q
1 = m•C
liquid water•∆T
1
where m = 100.0 g, C
liquid water = 4.184 J/g/°C, and ∆T
1 = 50.0°C
Q
1 = (100.0 g)•(4.184 J/g/°C)•(50.0°C)
Q
1 = 20920 J =
20.9 kJ
Stage 2: Boiling water at its boiling point (100.0°C); no temperature change
Use Q
2 = n• ∆H
vaporization
where n = (100.0 g)•(1 mol/18.015 g) = 5.5509297… mol
and ∆H
vaporization = 40.7 kJ/mol
Q
2 = (5.5509297… mol)•(40.7 kJ/mol)
Q
2 =
226 kJ (rounded from 225.92284 … kJ)
Stage 3: Heating water vapor from 100.0°C to its final temperature (120.0°C)
Use Q
3 = m•C
gaseous water•∆T
3
where m = 100.0 g, C
gaseous water = 4.184 J/g/°C, and ∆T
3 = 20.0°C
Q
3 = (100.0 g)•(2.01 J/g/°C)•(20.0°C)
Q
3 = 4020 J =
4.02 kJ
Now that the heat requirements for the three stages have been calculated, we can add all the Q values to determine the final answer.
Q
total = Q
1 + Q
2 + Q
3
Qtotal = 251 kJ
Example 3 - Analyzing a Heating Curve
Determine how much heat is required to change 100.0-g of ice at 0.0°C to a gas at 100.0 °C.
View Answer and Solution
Answer: 301 kJ
Solution

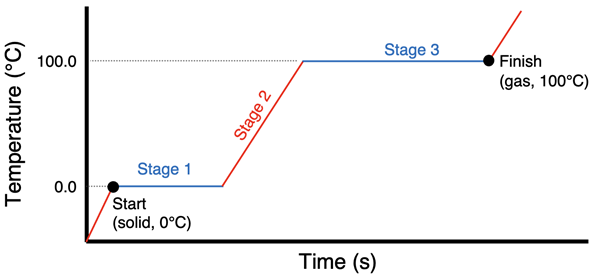

This is a three-stage analysis. The graph below shows the starting point and the final destination of a heating curve. Our solution corresponds to the graph.
Stage 1: Melting ice at its melting point (0.0°C); no temperature change
Use Q
1 = n• ∆H
fusion
where n = (100.0 g)•(1 mol/18.015 g) = 5.5509297… mol
and ∆H
fusion = 6.02 kJ/mol
Q
1 = (5.5509297… mol)•(6.02 kJ/mol)
Q
1 =
33.4 kJ (rounded from 33.41659 … kJ)
Stage 2: Heating liquid water from 0.0°C to its boiling point (100.0°C)
Use Q
2 = m•C
liquid water•∆T
3
where m = 100.0 g, C
liquid water = 4.184 J/g/°C, and ∆T
2 = 100.0°C
Q
2 = (100.0 g)•(4.184 J/g/°C)•(100.0°C)
Q
2 = 41840 J =
41.84 kJ
Stage 3: Boiling water at its boiling point (100.0°C); no temperature change
Use Q
3 = n• ∆H
vaporization
where n = (100.0 g)•(1 mol/18.015 g) = 5.5509297… mol
and ∆H
vaporization = 40.7 kJ/mol
Q
3 = (5.5509297… mol)•(40.7 kJ/mol)
Q
3 =
226 kJ (rounded from 225.92284 … kJ)
Now that the heat requirements for the three stages have been calculated, we can add all the Q values to determine the final answer.
Q
total = Q
1 + Q
2 + Q
3
Qtotal = 301 kJ
Comfort with solving chemistry problems always requires more than simply viewing textbook solutions. It is an endothermic process; it requires energy on the part of the student to gain comfort. Before continuing to
Lesson 2, make sure you’re comfortable with the process. Use the suggestions below to grow your confidence in solving problems involving state changes.
Before You Leave - Practice and Reinforcement
Now that you've done the reading, take some time to strengthen your understanding and to put the ideas into practice. Here's some suggestions.
- Our Calculator Pad section is the go-to location to practice solving problems. You’ll find plenty of practice problems on our Thermal Chemistry page. Check out the following problem set - Problem Set TC6: Heating Curves and Phase Changes.
- Download our Study Card on Energy and State Changes. Save it to a safe location and use it as a review tool.
- The Check Your Understanding section below include questions with answers and explanations. It provides a great chance to self-assess your understanding.
Check Your Understanding of Heating Curves
Use the following questions to assess your skill at analyzing heating curves and calculating the heat added to cause temperature or state changes. Tap the Check Answer buttons when ready.
Use the following questions to assess your understanding. Tap the Check Answer buttons when ready.
1. What does a horizontal line on a heating curve represent?
Check Answer
Answer: A Change of State
When heat is transferred to a substance, the added energy will do one of two things: increase the temperature or contribute to a change of state. Changes of state like fusion and vaporization occur at constant temperature. So on a heating curve displaying the temperature as a function of the added heat, the state changes are represented by constant temperature lines. These are the horizontal lines on the graph.
2. What does a diagonal line on a heating curve represent?
Check Answer
Answer: Warming of the Substance
When heat is transferred to a substance, the added energy will do one of two things: increase the temperature or contribute to a change of state. The changes of state occur at the melting point and the boiling point. Changes in temperature occur between these points or below the melting point or above the boiling point. On a heating curve displaying the temperature as a function of the added heat, the changes in temperature are represented by the diagonal lines on the graph.
3. When analyzing a heating curve to determine the quantity of heat added to a substance, when is the Q = m•C•∆T used?
Check Answer
Answer: When Tempeature is Changing
The equation Q = m•C•∆T is used to calculate the quantity of heat added to a substance when the added heat leads to a temperature change. The equation is used for the diagonal lines on the heating curve. If there is no ∆T, the equation obviously can't be used.
4. The heat of fusion of candle wax is approximately 14.8 kJ/mol. Assuming wax is C
25H
52, determine …
- … the molar mass of candle wax.
- … the number of moles of C25H52 in 5.00 grams of C25H52.
- … the quantity of heat required to melt 5.00 grams of C25H52.
Check Answer
Answer: a) 352.6783 g/mol, b) 0.0142 mol C25H52, c) 0.210 kJ
Part a:
The molar mass of C
25H
52 can be determined using molar mass values of C (12.0107 g/mol) and H (1.0079 g/mol) from the periodic table. The calculation involves ...
25•(12.0107 g/mol) + 52•(1.0079 g/mol) = 352.6783 g/mol
Part b:
The number of moles of C
25H
52 can be determined by using the molar mass in a conversion factor with 352.6783 g in the denominator and 1 mol in the numerator. Multiply the given quantity of 5.00 g of C
25H
52 by this conversion factor:
5.00 g C25H52 • (1 mol C25H52 / 352.6783 g C25H52) = 0.0142 mol C25H52 (rounded from 0.014177226 ... mol)
Part c:
The quantity of heat (
Q) required to melt C
25H
52 is given by the equation
Q = n•∆Hfusion where
n is the number of moles and
∆Hfusion is the heat of fusion of C
25H
52. The value of n was calculated in Part b. We will use the unrounded version in this calculation.
Q = (0.014177226 ... mol C25H52)•(14.8 kJ/1 mol C25H52) = 0.210 kJ (rounded from 0.2098229 ... kJ)
5. The heat of vaporizaton of butane (C
4H
10) is 21.0 kJ/mol. Determine …
- … the molar mass of butane.
- … the number of moles of C4H10 in 1.00 gram of C4H10.
- … the quantity of heat required to vaporize 1.00 gram of C4H10.
Check Answer
Answer: a) 58.1218 g/mol, b) 0.0172 mol C4H10, c) 0.361 kJ
Part a:
The molar mass of C
4H
10 can be determined using molar mass values of C (12.0107 g/mol) and H (1.0079 g/mol) from the periodic table. The calculation involves ...
4•(12.0107 g/mol) + 10•(1.0079 g/mol) = 58.1218 g/mol
Part b:
The number of moles of C4H10 can be determined by using the molar mass in a conversion factor with 58.1218 g in the denominator and 1 mol in the numerator. Multiply the given quantity of 1.00 g of C4H10 by this conversion factor:
1.00 g C4H10 • (1 mol C4H10 / 58.1218 g C4H10) = 0.0172 mol C4H10 (rounded from 0.017205248 ... mol)
Part c:
The quantity of heat (Q) required to vaporize C4H10 is given by the equation Q = n•∆Hvaporization where n is the number of moles and ∆Hvaporization is the heat of vaporization of C4H10. The value of n was calculated in Part b. We will use the unrounded version in this calculation.
Q = (0.017205248 ... mol C4H10)•(21.0 kJ/1 mol C4H10) = 0.361 kJ (rounded from 0.36131021 ... kJ)
6. Liquid bromine (Br
2) has a heat of vaporization of 30.0 kJ/mol. What quantity of energy (in kilojoules) is required to vaporize 15.98 g of liquid bromine?
Check Answer
Answer: 3.00 kJ
Like question #5, this calculation can be done in three steps ... even though the problem is not partitioned into three steps.
Step 1: Determine the molar mass of Br2
The molar mass of Br
2 can be determined using molar mass value of elemental Br (79.904 g/mol) from the periodic table. The calculation involves ...
2•(79.904 g/mol) = 159.808 g/mol
Step 2: Determine the number of moles of Br2 present
The number of moles of Br
2 can be determined by using the molar mass in a conversion factor with 159.808 g in the denominator and 1 mol in the numerator. Multiply the given quantity of 15.98 g of Br
2 by this conversion factor:
15.98 g Br2 • (1 mol Br2 / 159.808 g Br2) = 0.100 mol Br2 (rounded from 0.099994994 ... mol)
Step 3: Determine the heat required to vaporize the Br2
The quantity of heat (
Q) required to vaporize Br
2 is given by the equation
Q = n•∆Hvaporization where
n is the number of moles and
∆Hvaporization is the heat of vaporization of Br
2. The value of n was calculated in Part b. We will use the unrounded version in this calculation.
Q = (0.099994994 ... mol Br2)•(30.0 kJ/1 molBr2) = 3.00 kJ (rounded from 2.9998498 ... kJ)
7. Determine the amount of heat required to increase the temperature of a 3.82-gram sample of solid para-dichlorobenzene from 24.0°C to its liquid state at 75.0°C. Para-dichlorobenzene has a melting point of 54.0°C, a heat of fusion of 124 J/g and specific heat capacities of 1.01 J/g/°C (solid state) and 1.19 J/g/°C (liquid state).
Check Answer
Answer: 685 J
Solution

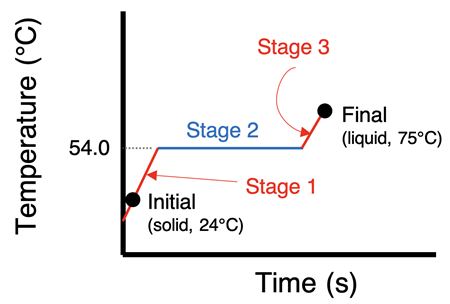

This is a three-stage analysis similar to Example 2. The graph below shows the starting point and the final destination of a heating curve. Our solution corresponds to the graph.
Stage 1: Heating solid from 24.0.0°C to its melting point (54.0°C)
Use Q
1 = m•C
solid•∆T
1
where m = 3.82 g, C
solid = 1.01 J/g/°C, and ∆T
1 = 30.0°C
Q
1 = (3.82 g)•(1.01 J/g/°C)•(30.0°C)
Q
1 =
116 J (rounded from 115.746 J)
Stage 2: Melting the solid at its melting point point (54.0°C); no temperature change
Use Q
2 = m • ∆H
fusion
(the heat of fusion is given in J/g so it is multiplied by the mass and not by the number of moles)
and ∆H
fusion = 124 J/g
Q
2 = (3.82 g)•(124 J/g)
Q
2 =
474 kJ (rounded from 473.68 kJ)
Stage 3: Heating liquid from 54.0°C to its final temperature (75.0°C)
Use Q
3 = m•C
liquid•∆T
3
where m = 3.82 g, C
liquid = 1.19 J/g/°C, and ∆T
3 = 21.0°C
Q
3 = (3.82 g)•(1.19 J/g/°C)•(21.0°C)
Q
3 =
95.5 J (rounded from 65.4618 kJ)
Now that the heat requirements for the three stages have been calculated, we can add all the Q values to determine the final answer.
Q
total = Q
1 + Q
2 + Q
3
Qtotal = DDD kJ
8. A 31.0-gram sample of frozen water at -12.7°C is warmed to its melting point and then melted. It is then warmed to a temperature of 22.2°C. Given:
Specific heat capacity of ice is 2.00 J/g/°C
Specific heat capacity of liquid water is 4.184 J/g/°C
Heat of fusion of water is 6.01 kJ/mol.
Determine …
- … the quantity of energy (in kilojoules) required to warm the ice from -12.7°C to its melting point (0.0°C).
- … the quantity of energy (in kilojoules) required to melt the ice.
- … the quantity of energy (in kilojoules) required to warm the liquid water from 0.0°C to 22.2°C.
- … the total quantity of energy (in kilojoules) required to change 31.0 g of solid water at -12.7°C to the liquid water at 22.2°C.
Check Answer
Answers: a. 0.787 kJ b. 10.3 kJ, c. 2.88 kJ, d. 14.0 J
Solution

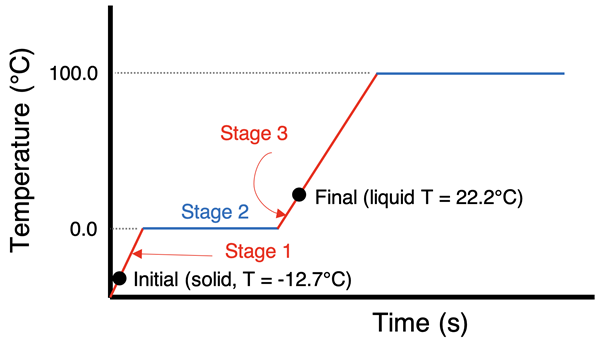

This is a three-stage analysis similar to Example 2. The graph below shows the starting point and the final destination of a heating curve. Our solution corresponds to the graph.
Stage 1: Heating solid from -12.7°C to its melting point (0.0°C)
Use Q
1 = m•C
solid•∆T
1
where m = 31.0 g, C
solid = 2.00 J/g/°C, and ∆T
1 = 12.7°C
Q
1 = (31.0 g)•(2.00 J/g/°C)•(12.7°C)
Q
1 = 787 J =
0.787 kJ (rounded from 0.7874 J)
Stage 2: Melting the solid at its melting point point (0.0°C); no temperature change
Use Q
2 = n • ∆H
fusion
where n = # moles = 31.0 g • (1 mol / 18.015 g) = 1.720788 ... mol
and ∆H
fusion = 6.01 kJ/mol
Q
2 = (1.720788 ... mol)•(6.01 kJ/mol)
Q
2 =
10.3 kJ (rounded from 10.341937 ... kJ)
Stage 3: Heating liquid from 0.0°C to its final temperature (22.2°C)
Use Q
3 = m•C
liquid•∆T
3
where m = 31.0 g, C
liquid = 4.184 J/g/°C, and ∆T
3 = 22.2°C
Q
3 = (31.0 g)•(4.184 J/g/°C)•(22.2°C)
Q
3 = 2880 J =
2.88 kJ (rounded from 2.879428 ... kJ)
Now that the heat requirements for the three stages have been calculated, we can add all the Q values to determine the final answer.
Q
total = Q
1 + Q
2 + Q
3
