Making Connections

Throughout this chapter, we’ve encountered many parallel concepts and equations that show the similarities between translational (linear) motion and rotational motion.  We’ve found it helpful to connect these with links—simple equations that allow us to find a rotational quantity knowing information about the linear quantity.

This final section is a summary that puts all these equations and links in one place. The hope is that, as you make connections, you’ll be able to not only predict the rotational equations from their translational counterparts, but that you will be able to appreciate how rotational motion is an extension of all we’ve learned thus far.

Our investigations in this unit have looked back at four previous chapters representing four big ideas that help us understand the how and why of motion.

4 boxes with the words Kinematics, Dynamics, Energy and Momentum

Let’s summarize the parallels and links that we encountered as we explored the rotational counterparts of each.

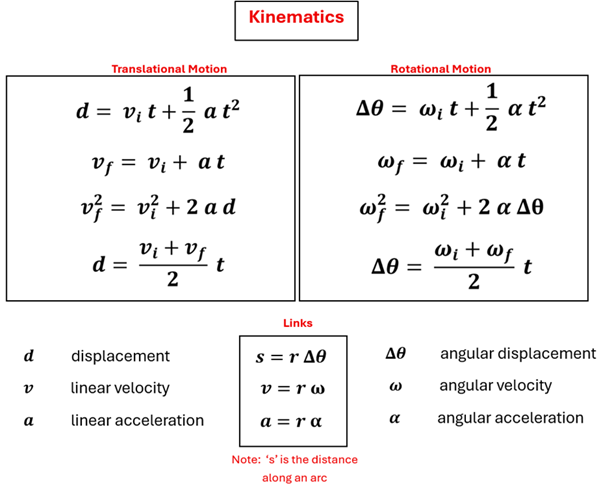

Kinematic equations for Translational and Rotational with the linking equations int he middle. In this description we will list the Translational then its Rotational counterpart. d = v sub i times t + 1/2 a t squared and Delta theta = omega sub i times t plus 1/2 alpha t squared. V sub f = v sub i plus a t and omega sub f = omega sub i plus alpha t. V sub f squared = v sub i sqaured plus 2 a d and Omega sub f squared = omega sub i sqaured plus 2 alpha delta theta. d = the sum of v sub i and v sub f all over 2 then times t and delta theta = the sum of omega sub i plus omega sub f all over 2 then times t. d is displacement, delta theta is angular displacement with the link s = r delta theta. v is linear velocity and omega is angular velocity with the linking equation v = r omega. a is linear acceleration with alpha being angular acceleration with the linking equation a = r alpha. A not that s is the distance along an arc.

It is helpful to point out that we have used ‘d’ to represent an object’s displacement—a length that represents the object’s final position minus its starting position.  While ‘s’ is also a length, it is the curved distance along an arc.  We’ve chosen to use two different variables to make this distinction clear.

In each of the link equations, ‘r’ connects the rotational and linear quantities.  ‘r’ is the radius—the distance from the axis of rotation to the points where the linear quantities are being determined.

The Dynamic equations are given for Translational and Rotational Motion with the linking equation. F sub net = m a for translational, and Tau sub net = I alpha. F sub net is net force, m is mass, and a is linear acceleration. Tau sub net is net torque, I is the moment of inertia, and alpha is angular acceleration. The linking equation r F sin theta = tau.

Once again, ‘r’ stands for radius.  We describe it here as the lever arm—a vector length from the axis of rotation to the place where the force is being applied.  Recall that ‘θ’ is the angle between the lever arm vector and the direction that the force is being applied.

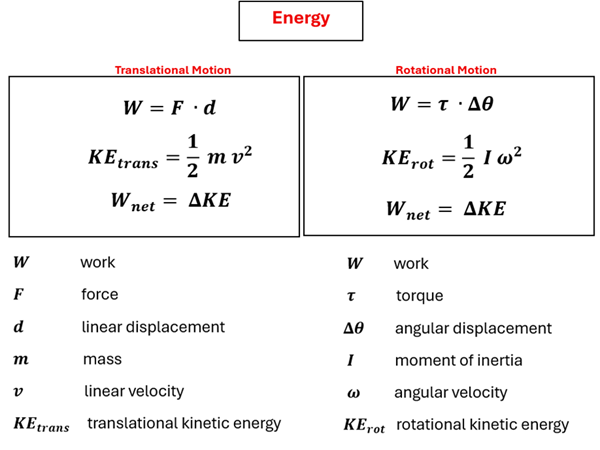

Translational and Rotational Energy equations are given. For this description, we will give the Translational followed by its Rotational counterpart. W = F d and W = Tau Delta Theta. KE sub trans = 1/2 m v squared and KE sub rot = 1/2 I omega squared. W sub net = Delta KE and W sub net = Delta KE. W is work (for both), F is force and tau is torque, d is linear displacement and delta theta is angular displacement, m is mass and I is moment of inertia, v is linear velocity and omega is angular velocity, KE sub trans is translational kinetic energy and KE sub rot is rotational kinetic energy.

You may recall that when we introduced work in a previous chapter, we wrote W = F d cos q, in case the force and displacement are not in the same direction.  While the same idea applies to torque and angular displacement, we’ll limit our examples for rotational motion to situations where the direction of the torque (CW or CCW) is the same (or exactly opposite) as the direction of the angular displacement.  For this reason, we did not include the ‘cos q’ term in either of the work equations above.

It’s also noteworthy that the work-energy theorem, Wnet = ΔKE, applies to both translational and rotational motion.  This makes sense since the net work done is how we change an object’s kinetic energy, either its translational or rotational kinetic energy.

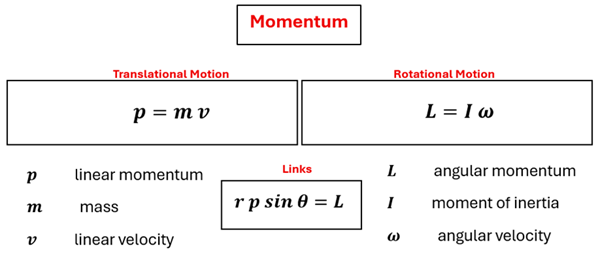

Momentum equation for Translational and Momentum. For translational, p = m v and rotational L = I omega. The linking equation is r p sine theta = L. p is linear momentum, L is angular momentum. M is mass, I is moment of inertia. V is linear velocity and omega is angular velocity.

Yet again, ‘r’ stands for radius.  We describe it here as the lever arm—a vector length from the axis of rotation to the place where the object with momentum is located.  Recall that ‘θ’ is the angle between the lever arm vector and the direction that the momentum vector.

Beyond recalling the key equations we explored in this unit, the purpose of this summary is to help us see the forest for the trees.  In other words, to see that the way we describe the rotational motion of objects is essentially the same as how we describe their linear motion, just with new variables.  And making these connections will help us see that the above equations are not a whole new set of relationships to uncover, but rather a way to analyze rotational motion through our understanding of linear motion.

Check Your Understanding

Use the following questions to assess your understanding. Tap the Check Answer buttons when ready.

1: In each case, the variable used for a translational quantity, or its rotational counterpart, is missing.  Identify the missing variable.

Translational
Quantity		 Rotational
Quantity
d
  ω
  α
F
m
  L
KEtrans

Check Answer

2: Predict the rotational motion equation that corresponds to the given translational motion equation.

Translational
Equation		 Rotational
Equation
d = vit + ½ a t2
vf2 = vi2 + 2 a d
Fnet = m a
KEtrans = ½ m v2
p = m v

Check Answer

3: A ‘link equation’ is used to connect a translational quantity to its rotational counterpart.  What single variable is part of each of these link equations?

Check Answer

4: Consider each of the following rotational quantities.  Identify which are scalars and which are vectors by organizing them into this chart.
Angular velocity
Angular acceleration
Torque
Moment of Inertia
Work
Rotational Kinetic Energy
Angular momentum

Scalar Vector






Check Answer
